Exhaust emissions categoryEU Stage 5/US EPA Tier 4f (Emission values classified by standard, e.g. EPA, EU, etc.)
Rated power180 kW / 241 hp
Paving width12 ft - 24 ft (Special paving widths, paving heights, and other options available on request)
Exhaust emissions categoryEU Stage 5/US EPA Tier 4f (Emission values classified by standard, e.g. EPA, EU, etc.)
Rated power180 kW / 241 hp
Paving width12 ft - 24 ft (Special paving widths, paving heights, and other options available on request)
Paving height0 - 18 in (Special paving widths, paving heights, and other options available on request)
Machine weight52,910 - 74,957 lbs (Weight specifications depend on the installed equipment and paving width)

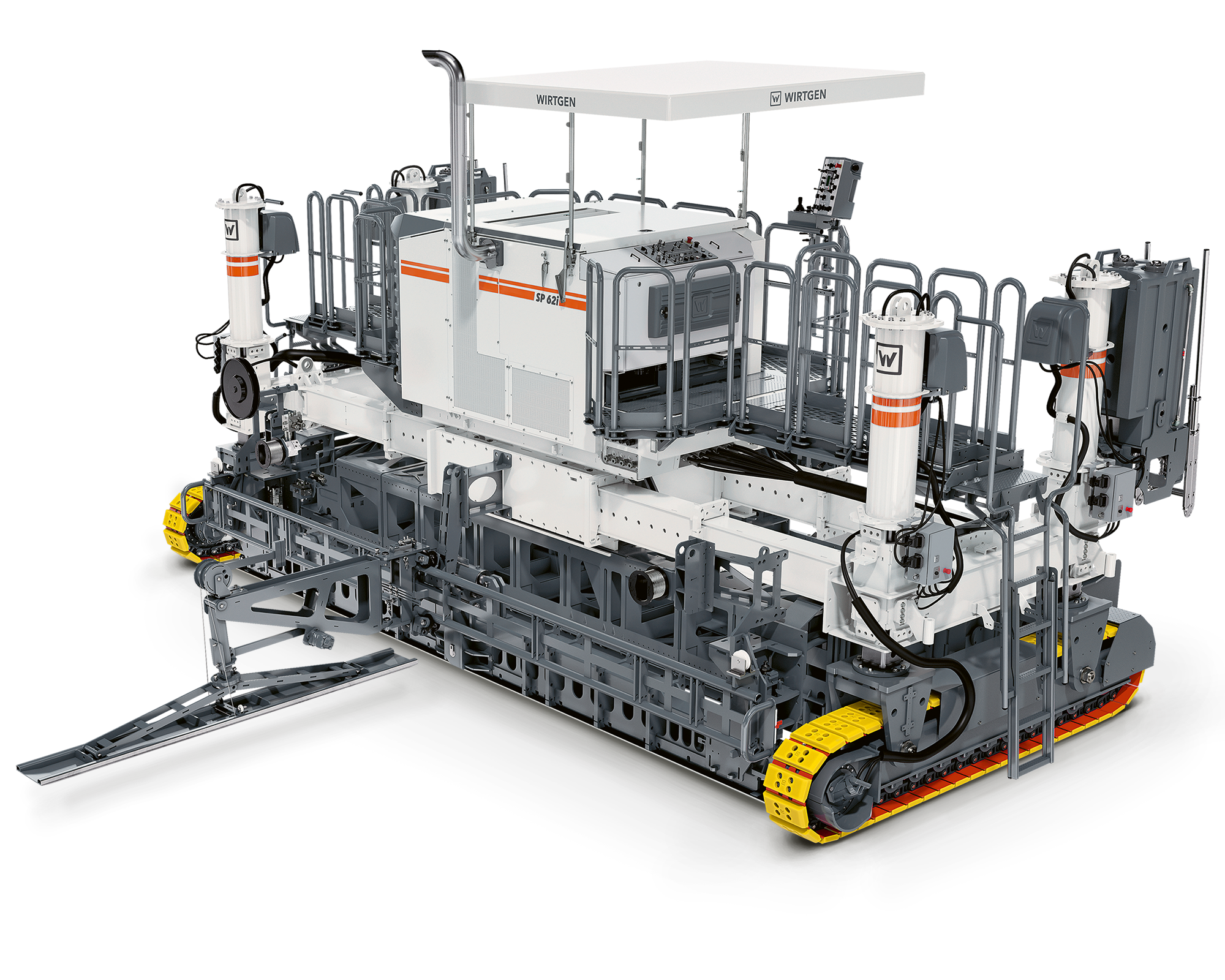

USP TexteThe flexible 2-track slipform paver with concrete equipment specially adapted to the US market is suitable for a wide range of paving jobs from 12Â ft to 24Â ft wide and 18Â in thick.
The fully modular machine design and simple changeover and expansion options make the machine highly adaptable to any job site situation.
The intelligent, electronic steering and control concept as well as the sensitive track steering of the two-track machine guarantee high-precision concrete paving.
Simple machine changeover makes fast transport and maximum machine availability possible.
The particularly low ground pressure simplifies operation, even under difficult operating conditions.
